Shipbuilding Portal Crane

The Shipbuilding Portal Crane is specialized equipment used in shipyards for block lifting and assembly operations, typically offering 100+ ton lifting capacity. Its rail travel and 360° slewing structure cover entire dock working areas. The steel structure is designed with high-strength steel compliant with industry safety standards, equipped with dual braking systems and load monitoring devices to ensure operational safety. Select models integrate laser positioning and remote control for enhanced precision and efficiency in specific conditions. Supporting multi-lifting-point coordination, it handles hull blocks and outfitting modules, serving as foundational lifting equipment in shipbuilding processes.

Key Technical Parameters

Gauge (m) 24

Rated Lifting Capacity (tons) 650

Max. Radius (m) 80

Lifting Height (m)

　　　　　Above Rail: 85

　　　　　Below Rail: 20

中铁五新重工画册.pdf

Product Advantages
Technical Parameters
Areas of Application
Options

- Commodity name: Shipbuilding Portal Crane
- 列表概要: The Shipbuilding Portal Crane is specialized equipment used in shipyards for block lifting and assembly operations, typically offering 100+ ton lifting capacity. Its rail travel and 360° slewing structure cover entire dock working areas. The steel structure is designed with high-strength steel compliant with industry safety standards, equipped with dual braking systems and load monitoring devices to ensure operational safety. Select models integrate laser positioning and remote control for enhanced precision and efficiency in specific conditions. Supporting multi-lifting-point coordination, it handles hull blocks and outfitting modules, serving as foundational lifting equipment in shipbuilding processes.
The Shipbuilding Portal Crane is specialized equipment used in shipyards for block lifting and assembly operations, typically offering 100+ ton lifting capacity. Its rail travel and 360° slewing structure cover entire dock working areas. The steel structure is designed with high-strength steel compliant with industry safety standards, equipped with dual braking systems and load monitoring devices to ensure operational safety. Select models integrate laser positioning and remote control for enhanced precision and efficiency in specific conditions. Supporting multi-lifting-point coordination, it handles hull blocks and outfitting modules, serving as foundational lifting equipment in shipbuilding processes. <h3> Key Technical Parameters </h3> Gauge (m) 24 Rated Lifting Capacity (tons) 650 Max. Radius (m) 80 Lifting Height (m) 　　　　　Above Rail: 85 　　　　　Below Rail: 20

1. Multi-Lifting-Point Balance Control Technology

Eliminates deformation during large segment hoisting.

2. Precision Motion Control

Three-coordinate positioning system and anti-sway algorithms suppress load swing.

3. Intelligent Operation Capability

Vision positioning system enhances positioning accuracy.

4. Anti-Collision System

LiDAR + millimeter-wave radar 3D monitoring enables early warning and braking.

5. Dynamic Wind Load Compensation

Improves gantry crane wind resistance.

6. Green Technology

Supercapacitors recover 30% of braking energy.

Main Technical Parameters of Shipbuilding Gantry Crane
Basic Parameters	Rated Lifting Capacity (t)	Main Hook	100, 200, 300, 400, 500, 600, 650
		Auxiliary Hook	32, 50, 75, 100, 125, 150, 200
	Lifting Height (m)	Above Rail Level	30~85
		Below Rail Level	5-20
	Max. Working Radius (m)		50-85
	Min. Working Radius (m)		15-20
Speed Parameters	Hoisting Speed (m/min)		1-10
	Luffing Speed (m/min)		10-30
	Slewing Speed (r/min)		0.5-1
	Gantry Travel Speed (m/min)		20

Primarily used in shipyards (dry docks, building berths, etc.). Equipped with steel travel wheels and operable with power supply voltages ranging from 380V to 10kV.
1. Intelligent Systems(Optional): Cloud-based monitoring, video surveillance, remote control, condition monitoring, intelligent lightning protection, automatic fire suppression.

2. Energy-Saving Systems: Regenerative feedback system, energy recovery system.

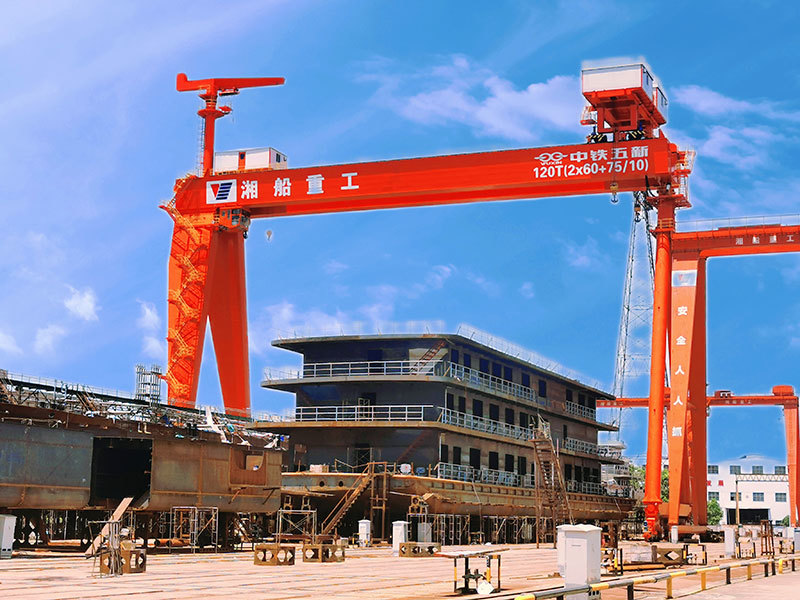

Shipbuilding Gantry Crane
